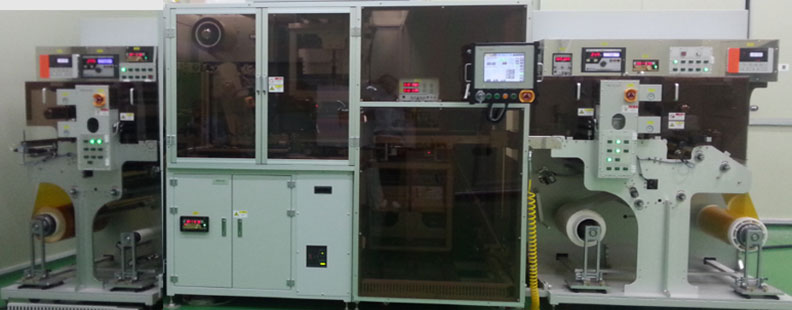

Un-Winder & Re-Winder For Flexible Thin Glass…



Specification

Material Width	500(mm) : User Spec.
Material Thickness	Glass 0.05 ~ 0.1(mm) : User Spec.
Material Chuck	6” Mechanical Chuck : User Spec.
Auto Tension	Load Cell x Powder Clutch/Brake
Tension Range	Less Than 80N
Anti-Static	Ionizer & Anti-Static Rubber Roll
EPC Accuracy	±1.0㎜
Anti-Particle	Clean Booth + FFU
Utility(Electric)	220V x 3P x PLC Inter-Face
Utility(Pneumatic air)	More Than 5㎏/㎠
Process	UnWinder(EPC)-Load Cell-Splice Unit ~ Equipment ~ Splice Unit-Load Cell-ReWinder(EPC) : User Spec.
