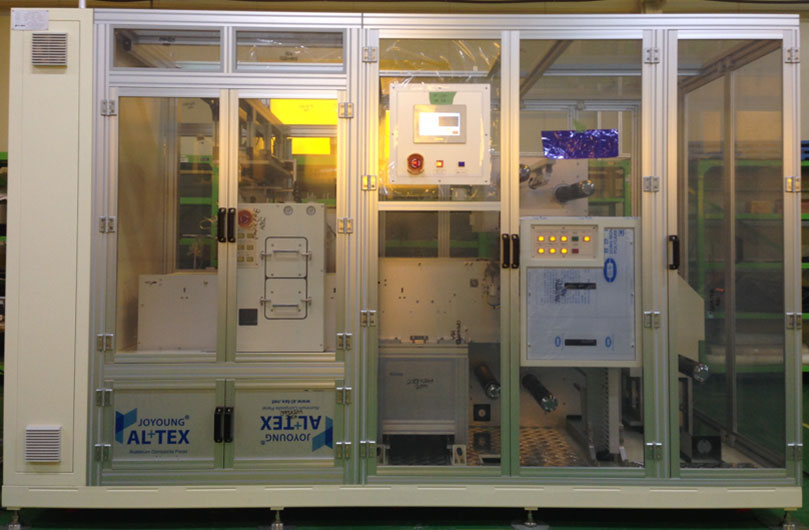

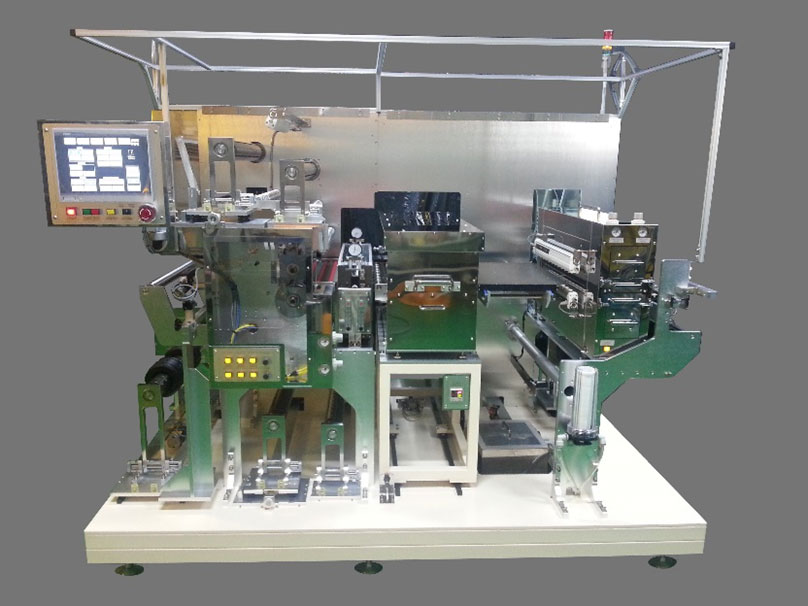

Sheet To Roll Laminator For FPCB, Flexible Material



Specification

Material Width	250/500(mm)
Material Thickness	0.05 ~ 0.3(mm)
Laminator Roller	ø80, Silicon Rubber Coating(2EA*1Set)
Heater	Tube Heater (220V, 1.5Kw)
Temperature	130℃ (Max)
Uniformity	±5℃(Option : ±2℃)
Laminate Speed	0.5 ~ 5.0 m/min
Temperature Range	Ambient ~ 130 ℃
Utility(Electric)	220V x 3P x 8㎾
Utility(Pneumatic air)	More Than 5㎏/㎠
Process	UnLoader-Clean Unit-Centering Unit-Wet Unit-DFR Chuck-Lamination-ReWinder(EPC)
