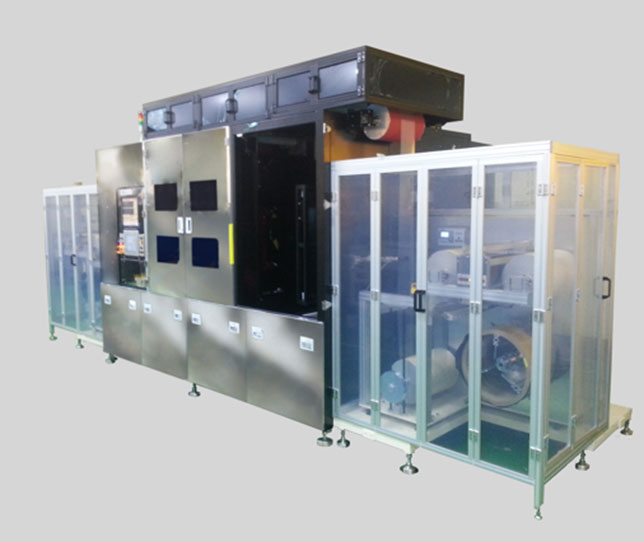

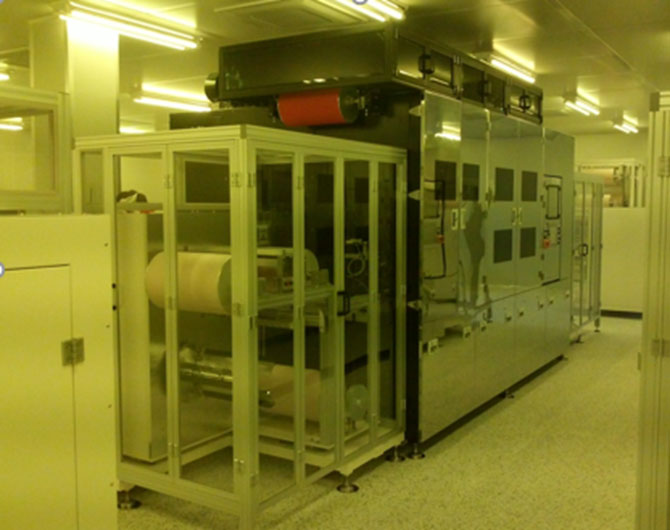

VCM Spring
Specification-Patent : Vertical Type
Material Width |
350(mm) |
Material Thickness |
0.1 ~ 0.35(mm) |
Exposure Area |
More Than 350 x 530(mm) |
Exposure Method |
Non-Contact : Gap control |
Light Source |
5~8㎾ Mercury Short Arc Lamp
Option : LED(365nm) |
Intensity |
25㎽(Uniformity 92%)
LED Type : 15~20㎽(90%) |
CA / DA Angle |
Less Than 1.5˚ / 1.5˚ |
Align Accuracy |
Mask To Mask : ±5㎛
Material To Material : ±15㎛
Mask To Mask Gap : ±5㎛ |
Tact Time |
11sec + Exposure Time |
Align Method |
6CCD + UVW Method |
Material Tension Control |
Buffer + weight |
Utility(Electric) |
220V x 50/60㎐ x 3P x 25㎾ |
Utility(Pneumatic air) |
More Than 5㎏/㎠ |
Process |
UnWinder-Cleaner-Exposure-Feeding-ReWinder |
