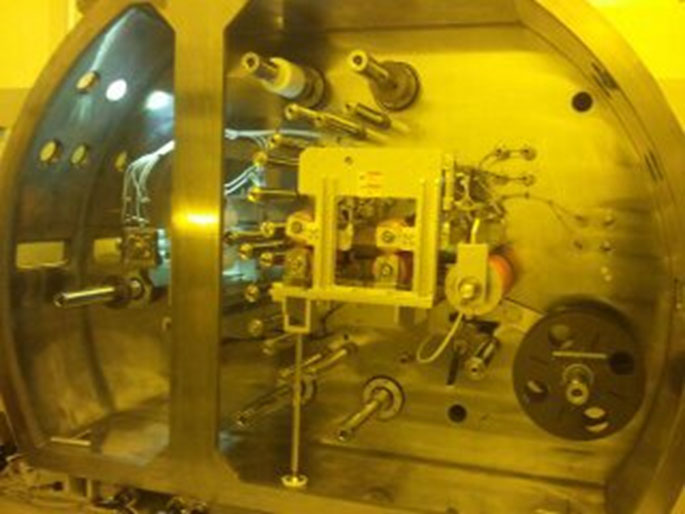

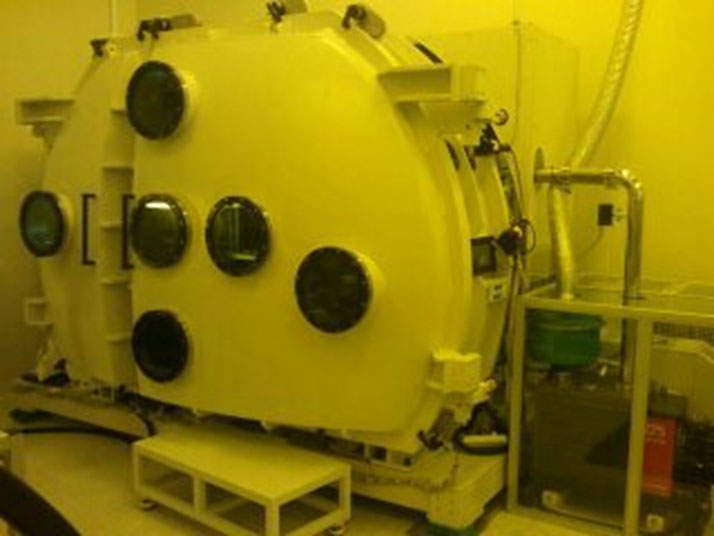

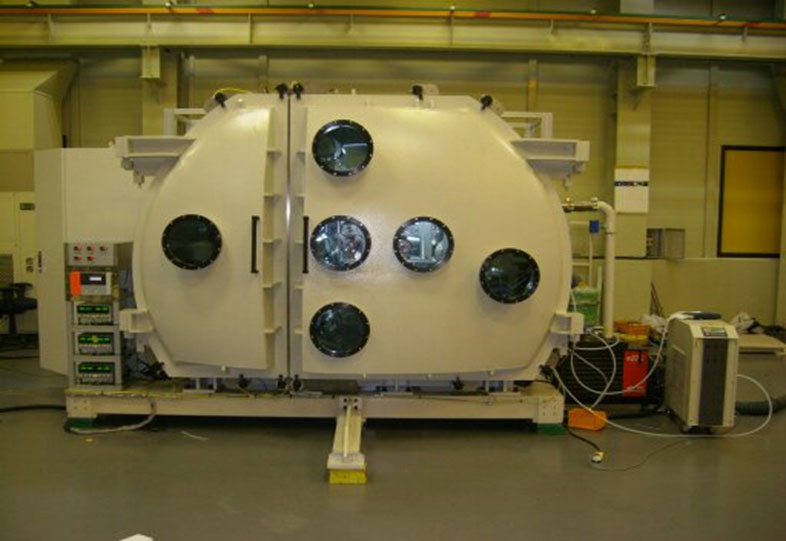

Vacuum Roll To Roll Laminator For FPCB, COF, Plated Lead Frame



Specification

Material Width	350(mm)
Material Thickness	0.1 ~ 0.35(mm)
Laminator Roller	ø100, Silicon Rubber Coating(2EA*2Set)
Heater	Tube Heater (220V, 1.5Kw)
Temperature	130℃ (Max)
Uniformity	±3℃
Laminate Speed	0.5 ~ 5.0 m/min
Temperature Range	Ambient ~ 130 ℃
Vacuum Level	50Pa(Less Than 10min)
Vacuum Pump	Oil Type Pump
Capacity	Less Than 7500ℓ/min
Utility(Electric)	220V x 3P x 15㎾
Utility(Pneumatic air)	More Than 5㎏/㎠
Process	UnWinder-Clean Unit-DFR Chuck-Lamination-ReWinder
