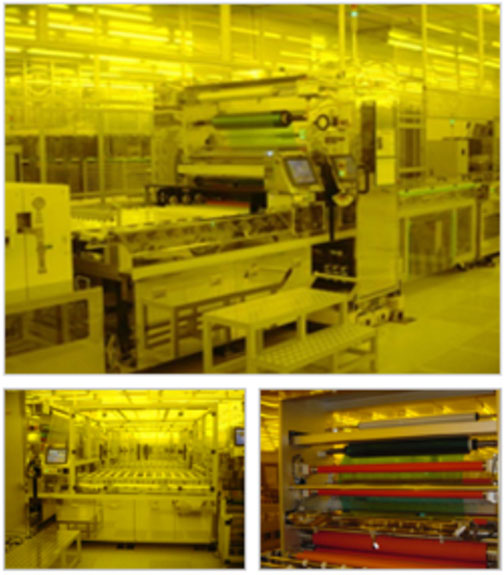

Sheet Auto Cut Laminator For FPD(Large Size Glass…)



Specification

Panel Size	32”~63”/42”x8Cut(max)
Panel Thickness	0.8 ~ 4.3(mm) : User Spec.
Laminator Roller	ø120, Silicon Rubber Coating(2EA*1Set)
Heater	Tube Heater (220V, 2Kw)
Temperature	130℃ (Max)
Uniformity	±3℃
Laminate Speed	0.5 ~ 5.0 m/min
Temperature Range	Ambient ~ 130 ℃
Utility(Electric)	220V x 3P x Variable
Utility(Pneumatic air)	More Than 5㎏/㎠
Process	Centering Conveyor-Positioning Unit-Tacking Unit -DFR Chuck-Lamination-Auto Cut Unit-UnLoading Conveyor
