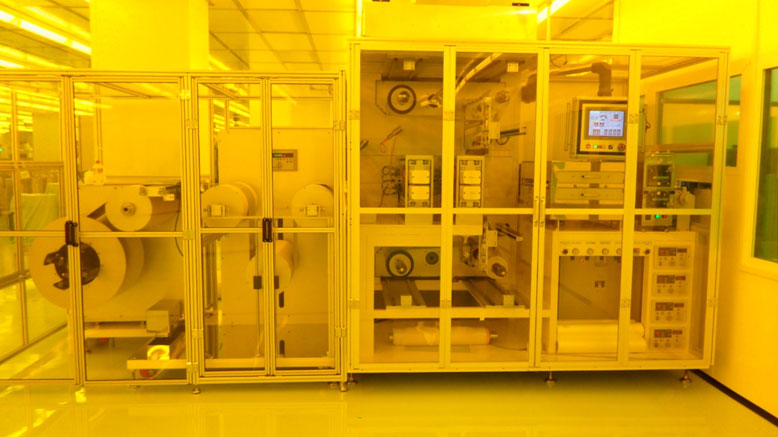

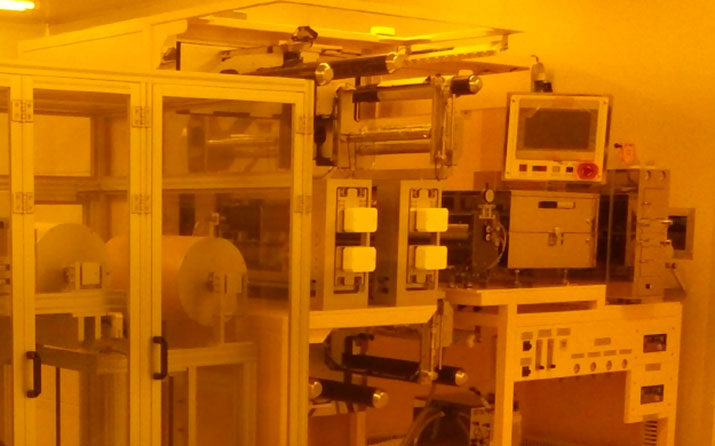

Roll To Roll Laminator For Lead Frame, VCM Spring



Specification

Material Width	350(mm)
Material Thickness	0.1 ~ 0.35(mm)
Laminator Roller	ø100, Silicon Rubber Coating(2EA*2Set)
Heater	Tube Heater (220V, 1.5Kw)
Temperature	130℃ (Max)
Uniformity	±2℃
Laminate Speed	0.5 ~ 5.0 m/min
Temperature Range	Ambient ~ 130 ℃
Anti-Particle	Clean Booth + FFU
Utility(Electric)	220V x 3P x 8㎾
Utility(Pneumatic air)	More Than 5㎏/㎠
Process	Pre Treatment-Guide Roll-Clean Unit-Pre Heater-Wet Unit-DFR Chuck-Lamination-Buffer-Splice Unit-ReWinder(EPC)
